- [2021 New Upgrade Radar Detector Hardwire Kit ] You will get 1 x Radar Detector hardwire kit,1 x installing crowbar,4 x fuse tap cable,1 x Back-up fuses Radar Detector hardwire with the most popular fuse types will meet the applications for most car models

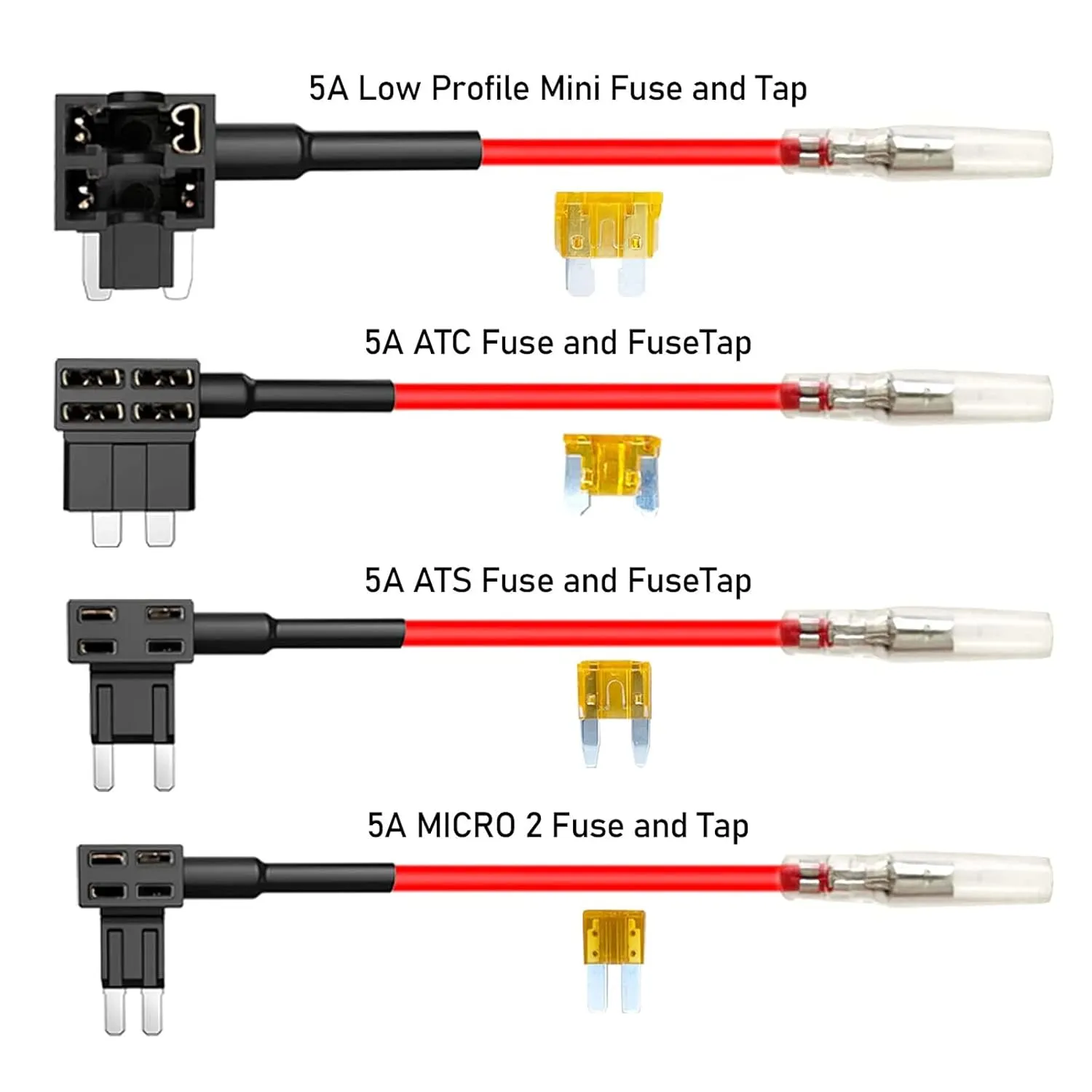

- [Multiple Fuse Sizes] Tap-A-Fuse in 4 Common Sizes ATC, ATS, Mini, and Micro 2 Comes With 5a Fuse For Each Tap-A-Fuse,plug and play No Soldering or tapping wires;
- [Wide Compatibility] Our radar detector hardwire kit is suitable for Valentine One,Uniden R1 R3 R7 DFR7 DFR8,Escort Passport 9500i 8500 X50,Passport 7500S, 8500, 7500, 6800; Beltronics STi Driver, Pro RX65, Pro RX55, Vector 995, 965, 955, 940, 895, and Express 795 Radar Detector,with RJ-11 "telephone style" jack.
- [Easy Installation] Simple hidden wiring keeps the car neat and tidy and releases the cigarette lighter for connecting to more devices. TIPS: Please read the quick guide carefully before use
- [Worry-Free Sales Service] Each of our Radar Detector hardwire kit has undergone stringent quality testing.Cover any Radar Detector hardwire kit issues.Contact our customer service team at any time.

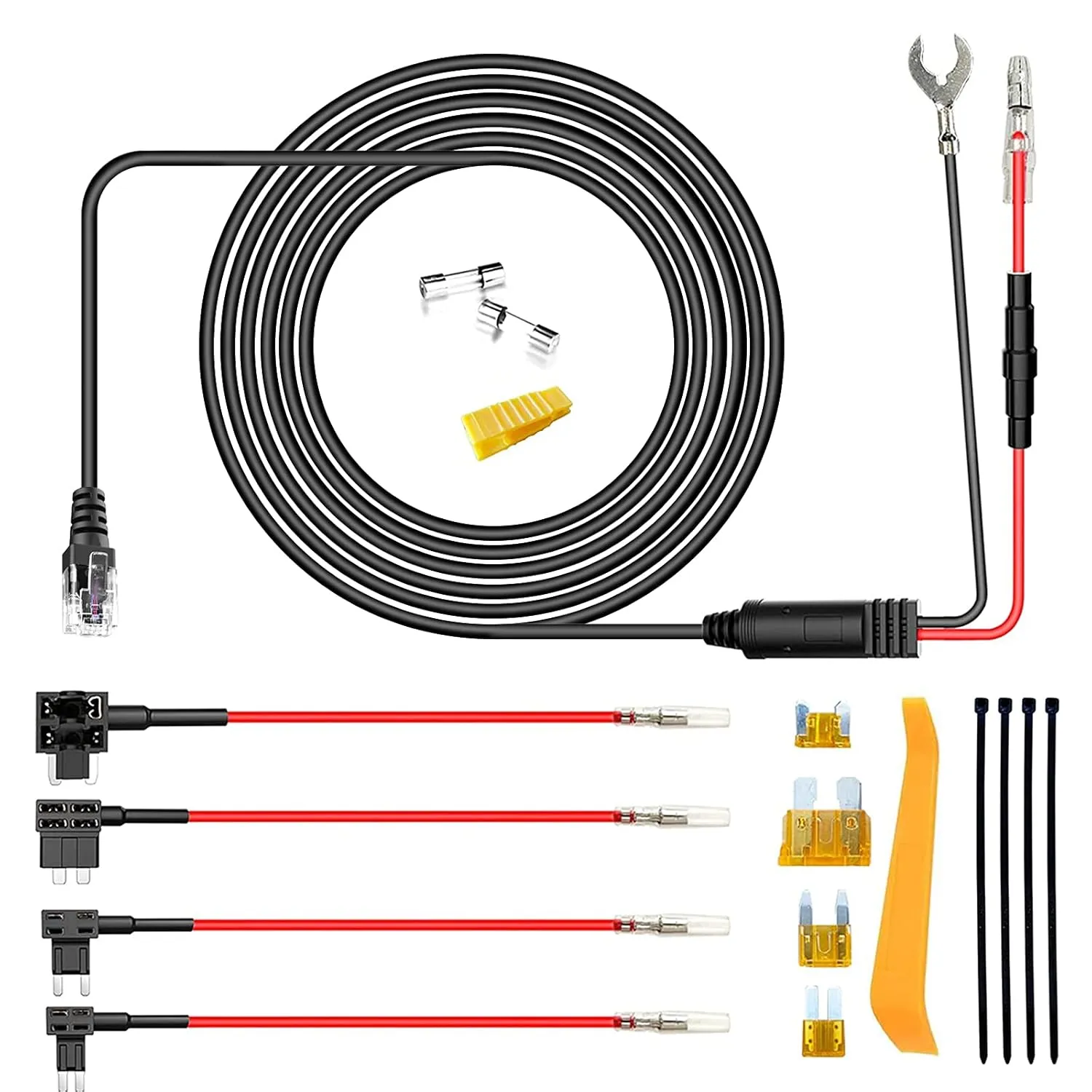

Bangjia Radar Detector Hardwire Kit（RJ11 / 13ft）：
It's a must-have if you’re using a Radar Detector in your car or truck. It connects the Radar Detector directly to the fuse box under the dashboard for power from the vehicle’s battery. Our Radar Detector hard wire kit frees up the 12-volt power socket (the cigarette lighter) for other uses. as the hidden wiring,it will make your car more neat.
Specifications:
★ Connector: RJ11
★ Output: 12V / 2A
★ Working Temperature:-40-80℃
★ Cable Length: 13ft (4M)
Package Contents:
★ Hardwire Kit for Radar Detector x1
★ Fuse Tap Cable x4
★ Installing crowbar x1
★ Back-up fuses x2
★ Tie x4
Installation Steps:
Step 1: Connect the Red Wire of the Hardwire Kit with one type of Fuse Taps that your vehicle requires.
Step 2: Locate the Fuse Box and find an ACC Fuse Slot in it. ACC Fuse Slot only has power when the ignition is on.
Step 3: Remove the original Fuse in the ACC Fuse Slot and install it into the Bottom Slots of the Fuse Tap. Insert the same size of Fuse we provided into the Top Slots of the Fuse Tap.
Step 4: Connect the Red Wire of the Hardwire Kit to the positive terminal of the ACC Fuse Slot in the Fuse Box.
Step 5: Crimp the Black Wire and screw it down to any non-coated metal bolt/screw in your vehicle to ground it.
Step 6: Connect the RJ11 jack of the Hardwire Kit to the RJ11 input of your Radar Detector, and then the installation is completed.
Warm Tips:
★For safety reasons, we strongly recommend that you do not use any fuse slot used by any of your vehicle's critical components, such as the Air Bags.
★It is recommended to use a fuse that only has electricity when the car is started.
★ If you don't have experience on installing the hardwire kits for the Radar Detector, please ask professional for help
- Product Dimensions : 5.91 x 3.15 x 1.57 inches; 4.97 ounces
- Date First Available : June 1, 2021
- Manufacturer : Loudi Bangjia Electronics Co., Ltd.
- Country of Origin : China
